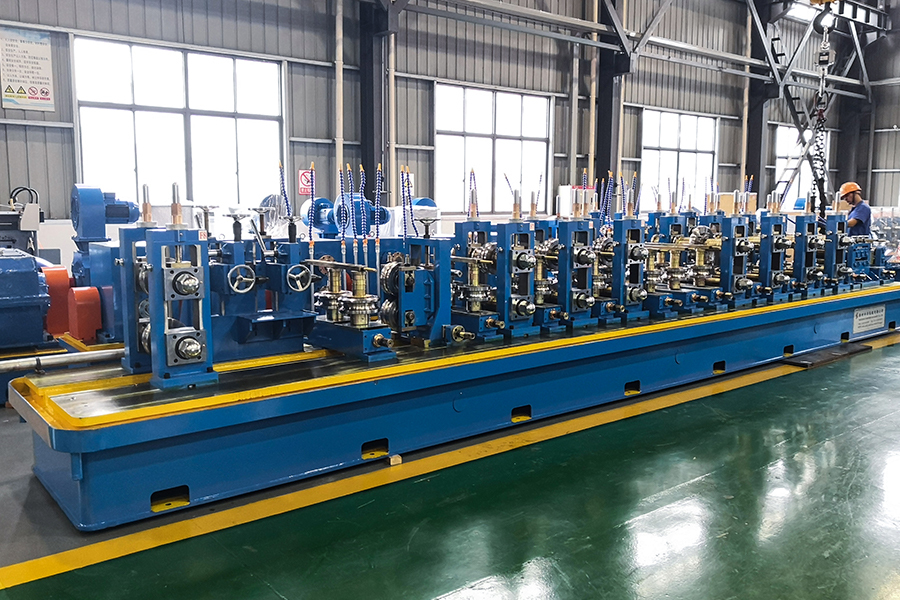

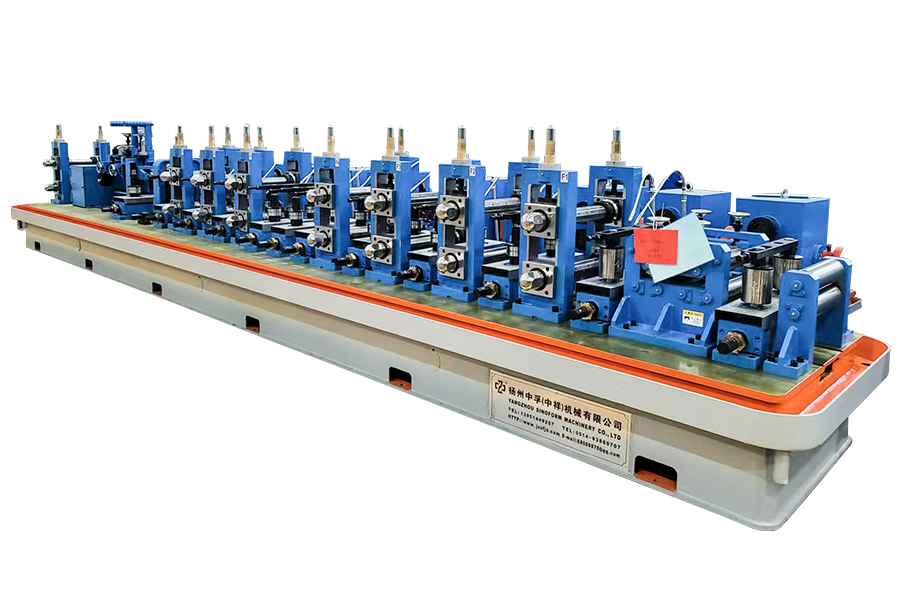

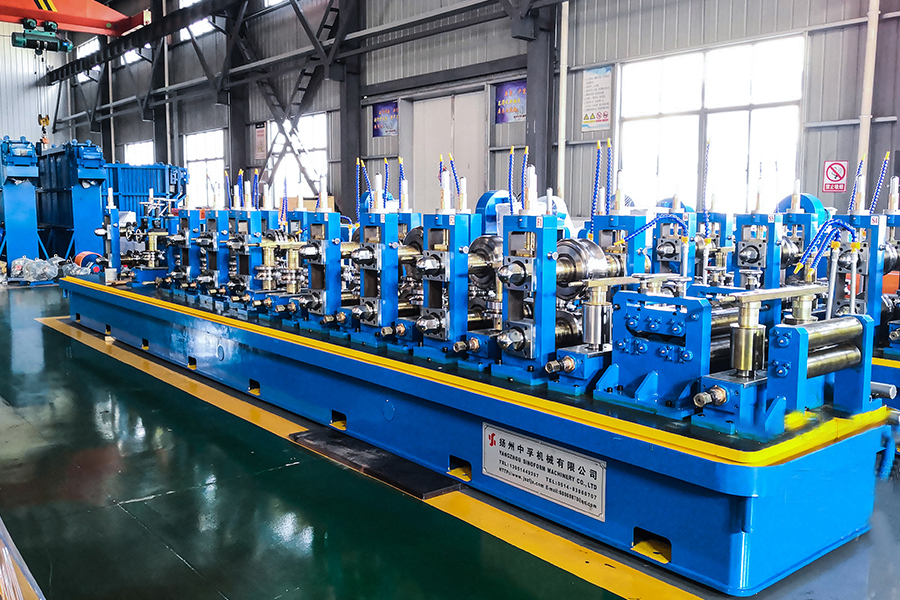

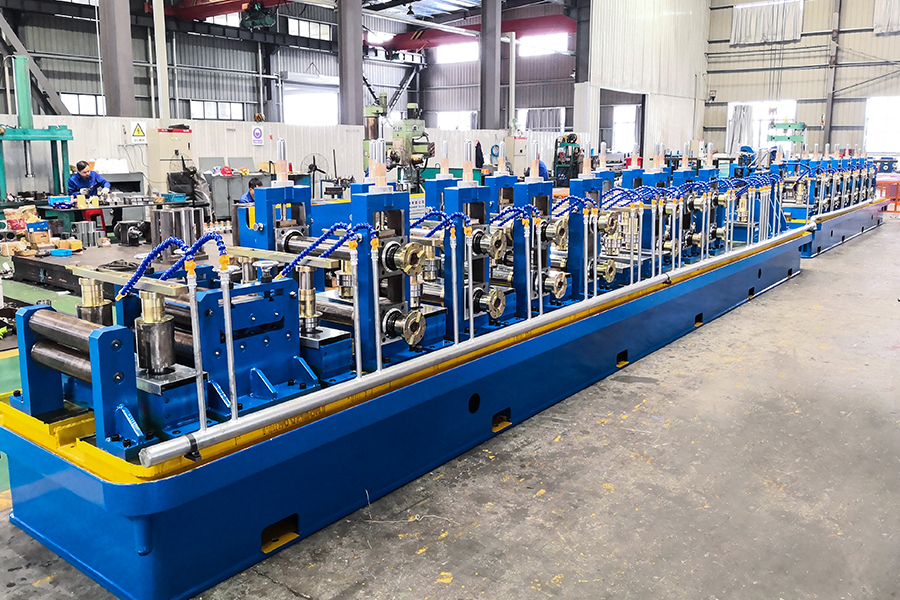

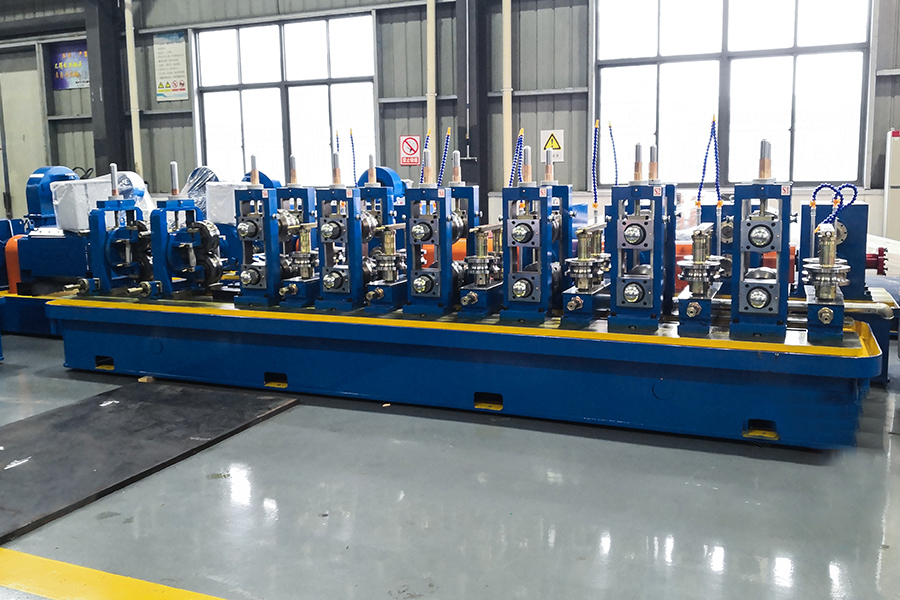

HG127 Pipe Machina

Praecipua technicae operationis ac explicatio in linea productionis

Apparatus exemplar Productio range Muri crassitudine range Celeritas Milling Summus frequentia potentia
HG90 Φ30/48~Φ115 mm 5.5~4.5 mm 20~60 300KW
25×25~90×90 □δ≤3.5mm
PREV: Nullus prior articulum Next: HG76 ERW Tube molendini versus

1. Officina necessaria

Item Parameter Dicta
Pasce directionem Laeva sive dextera viscus (processus officina dependet in mos in layout) Adversus apparatum, viscus rudis materiae directio
Summa potentia armorum

Proxime 770KW (machina principalis 320KW Alta frequency300KW machina auxiliaris apparatus150KW)

Virtus copiam voltage vexillum 380V/50Hz; Quattuor tempus filum systematis tres- Minimum voltage distributio scrinium, cables, mos auto-provisus
Armorum area operuit

L 55-65M×W 4.5M

Secundum apparatu layout
Summus apparatus frequentia glutino regio operitur L 6M×W 3M×H 2.8M
Aquarum copia (REDIVIVUS)

Stagnum unum refrigerans: 30m³; Quisque posuere laoreet elit. Vel, elit potest emptori picturas officinas praebere, et ex delineatas facere, consilium eundi causandi facere.

Lorem ipsum aqua piscinam, aquam sentinam, systema plumbi, et turrim refrigerationem praebet
Aeris copia Aer compressor: unus paro 1.6m³for communis ferro tibia, si Galvanized pipe opus 3.5m³ Lorem auto-compressorem aeris, piscinam repositam, et pipelineum praebet
apparatu elevatio Aircrane V ~ 10Tons: duos Lorem auto-praebet
Normalis partes consumabiles 1）Scraper cultri
2） vidit ferrum
3）Ferrite
（4）Induction coil (tubus cupreus, tubus insulatus)


Processus productionis
Rudis materia ( chalybe expolitio ) → expolitio → tonsura et finis glutino → materia cumulatio → non- vis aequandi → molendini formatio → summus frequentia glutino → removens lappas extra commissurae glutino → refrigeratio → circumspicientia → dure corrigens → fixa longitudo secans → peractio → sarcinis


Technical specification (imaginibus tantum referat)

1、 Una parte hydrau uncoiler
Munus Munus huius unitatis est totam orbem detractam ferro excutere et necessarias materias rudis machinae formandae praebere.
Loading Pondus Maximilianus. 8.0 Tons/parte
conc capitibus

Unius pyramidis caput

Conehead structuram genus Coniunctio linguae, fortis et stabilis
Genus Expand Hydraulica expanding
Cono capitibus materia Fusum: 42CrMo, cudendum, altiore temperamento;
Arcus laminam: 45 # altiore temperantia
Cuneus labor lapsus: 45 # ferro temperari
Genus fregit Genus pneumaticum
Materia interclusio machinam Modus manualis

2 、 Tonsura et petat-welder


Munus Munus eius est tonsura et aligning caput et finis duarum pituitarum diversarum, partes inaequalium secantium et duas ligaturas ligaturas simul ut linea continue operari possit.
genus tonsurae

Tonsura hydraulica, materia: Cr12MoV

Genus clamping

Hydraulica clamping

genus welding TIG automatic welding

3. Accumulator Horizontalis

Munus Adhibetur in accumulandis satis chalybeis denudat ut machina currit continue
Extra magnitudine O.D. 5.0m
Pascentium motricium 18.5 KW (AC motricium cum variabili frequentia celeritatis regulatio)
Repono motricium 22 KW (AC motricium cum variabili frequentia celeritatis regulatio)
Pascentium celeritatem MAX200m/min

Facultatem repono

500～1000m

2. Formans et considerans machinam principalem (septem ante et quinque in tergo, lectum scissum est)

Praecipua machina

Ordinatio Unit

2 H → 2 V → 3H → 3V → 4 H → 4 V ( A ) → 4 V ( B ) → 4 V ( C ) → 5 H → 5 V → 6H → 6 V → 7 H → 7V

Ducentia et 2 vel 3 scutulis Extrude →

Sizing：1 V → 1 H → 2 V → 2 H → 3 V → 3 H → 4 V → 4 H → 5 V → 5 H → 6V → 6 H → Mensuratiora velocitas → Rectans 1 → Rectans 2 → V.

1 ） Adtritio fabrica
Munus
Cum VII-volumen adtritio fabrica intrare formatam machinam constanter
Structure
1 Volumen Anti-siliens, 2 rotulos verticales dirigens, 7 rotulos GCr15 aequans, superficies altae frequentiae exstinguentis curationis.

2 ）

Machinam formandi (spli-type)

Munus Clavos ferreos paulatim exprimi potest in codicellos ad fistulas formando volumina, easque ad machinam glutino mittere;
Formans genus

"W" formans, Duplex radii foraminis genus

Horizontali volumine stat 7 stands
Vertical-volumen sto 9 stands

Horizontali volumine stat

quantitas

7sets

Structure
Duplex columna machinalis gantaria, cum fabricante fine compage capax, ad latus volumen repositum
Materia horizontalium Subtilitas ferro partes
Horizontalis scapus diametri Φ90mm
Horizontalis scapus materia 42CrMo, normalized HB260~290, superficies alta frequentia exstinguentis HRC50~55
Superficies temperatura exstinguitur

Vertical-volumen sto

quantitas

9 stands

Structure Versoria duplex structura, firmata et affixa lamellis viverra. Mola volvens in cylindro stipite per gestus coacervata est, ut facile mobilis scutellas faciat.
Materia verticalis stat Genus socors labor lapsus est (princeps praecisione non facile laedi)
Verticalis scapus diameter

Φ60mm

Verticalis materia scapi 40Cr, normalized HB260~290, superficies alta frequentia exstinguentis HRC50~55
Superficies temperatura exstinguitur
cylindro temperatio methodo
Centrum et positio duorum spiculorum cylindri cochleae manicam cochleae aptat, et nux aenea nux aenea est; Altitudo cylindri verticalis est subtiliter aptando nucem aptando.

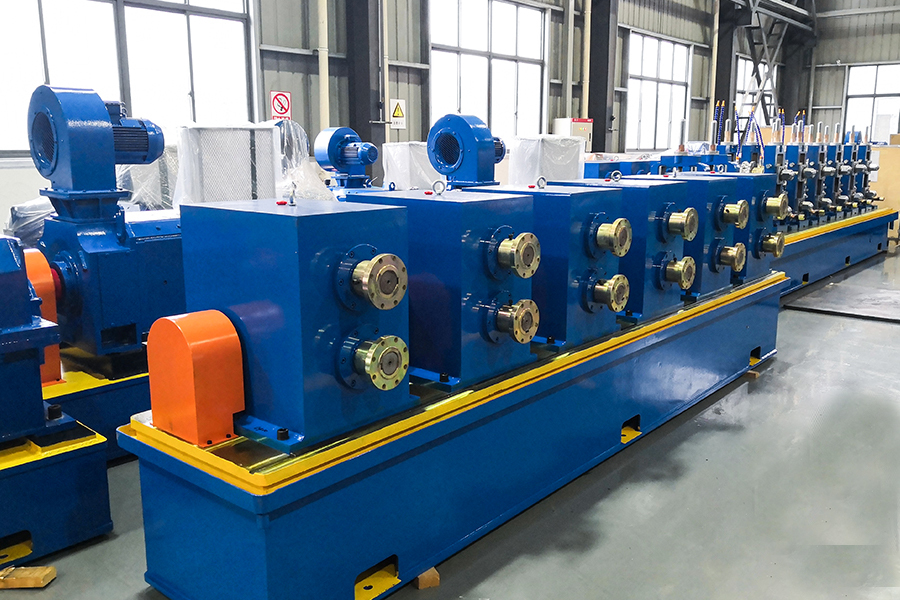

gearbox
quantitas 7sets
Materia arca QT400
Transmissio genus Cochleam revellere coneris; calces tradenda
Cochleam materiam calces revellere coneris;

20CrMnTi

Fictis, dente superficiem exstingui curatio
Telum materia calces 40Cr, normalized HB260~290, superficies alta frequentia exstinguentis HRC50~55
Superficies temperatura exstinguitur

3) welding sectionem
weld commissura guiding
Munus

Contunsionem commissuram gubernare, glutino V-angulo aptare, ut pugillus commissurae recte dirigi possit in extrusionem cylindri situm glutino in welding.

Structure 2-volumen genus, horizontaliter et verticaliter aptabile, et ad quemdam angulum gyrari potest. Temperationes horizontales et verticales cochleae baculis utentes fiunt, gyrationis frame dum adaptationes fiunt utentes anni vermiculi.
hastile materia 40Cr, normalized HB260~290, superficies alta frequentia exstinguentis HRC50~55
Superficies temperatura exstinguitur
② Expressa fabrica (Duae vel tres cylindro genus SQ)
Munus De glutino commissurae claudentur
Structure Duo vel tres scutulis SQ, undiquaque duplicata compages, infixae laminae vello roboratae
hastile materia 40Cr, normalized HB260~290, superficies alta frequentia exstinguentis HRC50~55
Superficies temperatura exstinguitur
③ Scraper
Munus Ferro rasorio utere ad cucurbitam exterius tollendam, glutino commissura lenis et limpida erit.
Structure

2 strigiles ponit; Stridens sursum, deorsum, horizontaliter accommodetur, et munus jejunium elevatio habet. Grabatus vel cylindrus infra ensem possessor praebetur.

④ ut tincidunt
Munus Tibias ferreas stabiliens et adulatione lapidum externorum et partium inaequalium
hastile materia 40Cr, normalized HB260~290, superficies alta frequentia exstinguentis HRC50~55Tempering Surface quenching
IV) refrigerationem tristique
Munus spargit aquae piscinae genus adoptare ad certam fistulam blank satis refrigerantem.
Structure Arca-typus compages iuncta est, superior fistula aquatica in elisam figuram facta est et fistulam ferri refrigerat.

5)

Machina inspectionis (6 horizontalis, 6 verticalis 2 mutatoriae Turcorum directio)

Munus
Munus quattuor voluminis generis machinae quadratae impellentium est ad fistulam chalybem praecisionem informandam in fistulam quadratam in quadrato spatiosam et dure corrigendo ad ideales dimensiones geometricas et planas.
① Horizontalis sto 6. Occidere, idem ac machinatio
② Vertical-volumen sto 6. Occidere, idem ac machinatio

3） Fabrica corrigens  2 caput Turcicum corrigens (Vide postrema capita Turcorum supra)
Genus Erigens Fabrica
Turcica capita, 360° rotabiles
Structure
2/4 - Volvitur tabula, cum rotulis volubilibus in eadem superficie distributis, horizontaliter et verticaliter aptabilibus, et ad quemdam angulum rotandi capax. Temperationes horizontales et verticales cochleae baculis utentes fiunt, gyrationis frame dum adaptationes fiunt utentes anni vermiculi.
hastile diameter Φ40mm
hastile materia 40Cr, normalized HB260~290, superficies alta frequentia exstinguentis HRC50~55
Superficies temperatura exstinguitur

VI) Main repulsi fabrica
Coegi Via
Motor → Reductor → Apparatus arca → Universalis iaculis → horizontalis spicula
Praecipuum motor exemplar, potentia 160KWLow celeritas
DC motor 2 sets ；
reducer

ZLY224

2 sets ；
Gearbox pars formatam 7 sets ； inspectionem partem 6 sets
Umbellae spiralis capsulae transmissionis calces, magna onera portantes capacitatem, alta transmissionis efficientia, et longae vitae ministerium.

Umbellae umbellae materias calces: 20CrMnTi， Temperatio superficiei exstinguientis Dep. strati carburised 1.1~1.5 mm superficies exstinguendi duritiem HRC55～60。

5 、 Rollerus
Roll Materia ： Cr12 ， Curatio caloris duritia: HRC58-62. Filum keyway secans et CNC machinatio efficiendi foraminis accurate figurat et superficies expolitio laborat.
extrudere volumine Materia ： H13 ， Curatio caloris duritia: HRC50-53. Filum keyway secans, profile CNC torno, et superficies expolitio laborat.
Codex cylindrus Materia ： 45# ferrum.

6.1 、 Calidum secans serra

Customers potest eligere 6.1 vel 6.2

Structure PLC, Ordinarius serram secans
Maximum secans diameter 1）

Φ115mm（90*90）

2） maximum cutting crassitudine

Δ4.5mm

3） secans longitudinem et subtilitatem L=3～8m, ≤±3 mm
4 coegi genus Vidit pneumaticum elevatum et demissum (videns caput auctum et auctum);
-5, magnitudine serrae ferrum

Φ700mm×Φ80mm×4.0/5.0mm

6） pulsis motricium 30 KW AC motor
7 secans motricium 37 KW AC motor
8）Clamp Air Clamp

6.2 、 Frigus secans serram
Structure

Motion controller, HSS Sublimes hastis ferri

（ 1 . Maximum secans diametri

Φ115mm

（ 2 . maxime secans crassitudine

Δ4.5mm

（ 3 . secans longitudinis et subtilitatis L=4～8m, ≤±2 mm
（ 4 . genus coegi Servo motricium / pila cochlea / lineae dux
（ 5 . magnitudinem vidit ferrum

Φ560mm-HSS

summus celeritas ferro
（ 6 . driving motricium 15 KW Yaskawa Servo motor
（ 7 . secans motricium 18.5 KW AC motor
（ 8 ） Pascentium motricium 2.9 KW Yaskawa Servo motor
（ 9 . celeritas sectionis 20-70 m/min

7 、 TRADUCTOR tabulam
Munus
Munus est, accelerare separationem fistulae ferreae ad certas longitudinum resetas et eas in area packaging
Transmissio motor 3 KW
AC motricium cum variabili frequentia celeritate regula
quantitas of feeding rollers 12 sets
Longitudo 12 M

VIII 300KW summus frequentia apparatus glutino
Introductio Totum apparatum ratio PLC refrenat ad comprehensivam interclusionem temperantia et culpa diagnosis functionum consequendam, et status operativus instrumenti per velum LCD monitorium est.
Compositio RECTIFIER ARCA
ARCA
REFRIGERATIO INVENTUM
MENSA
TRANSFORMATOR
DC SPEED ADJUSTOR




9 、 Cadmiae spargit machina (mos optio)
Overview Arcus ad utrumque filum urit ut fons caloris, causans filum ad conflandum. Eodem tempore, aer compressus atomis filum liquefactum in stillicidia gasi, quae tunc summa celeritate sparguntur in superficies workpiece praetractata. Formam integram efficiens.
