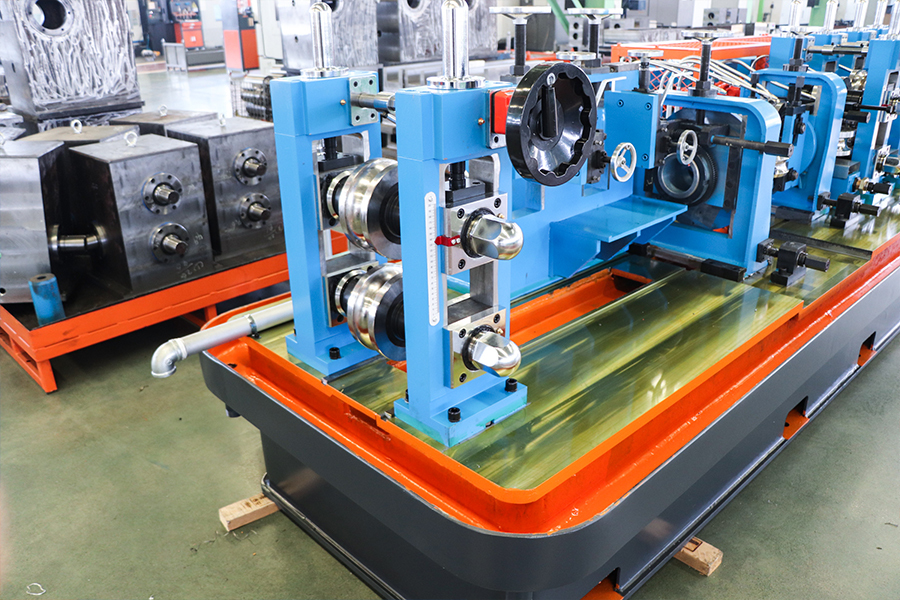

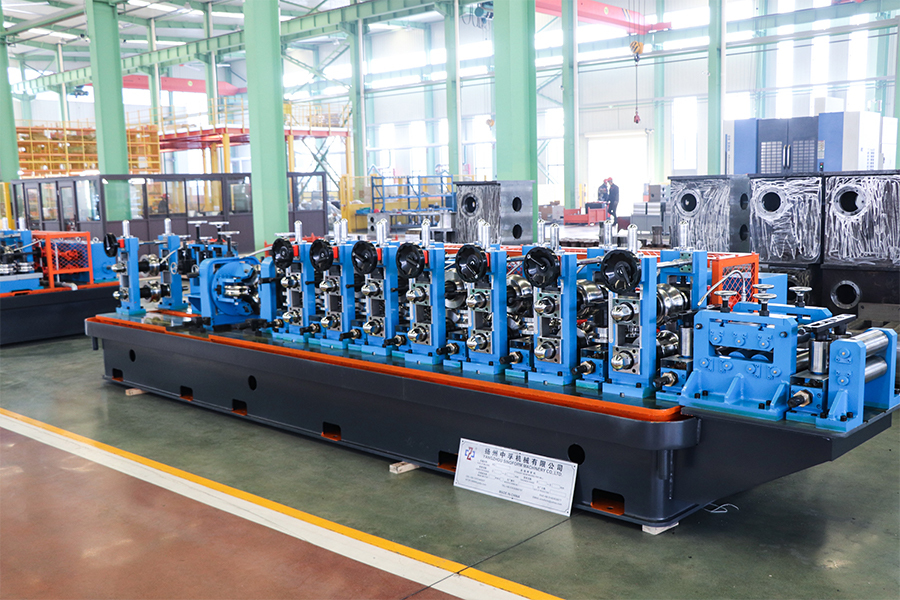

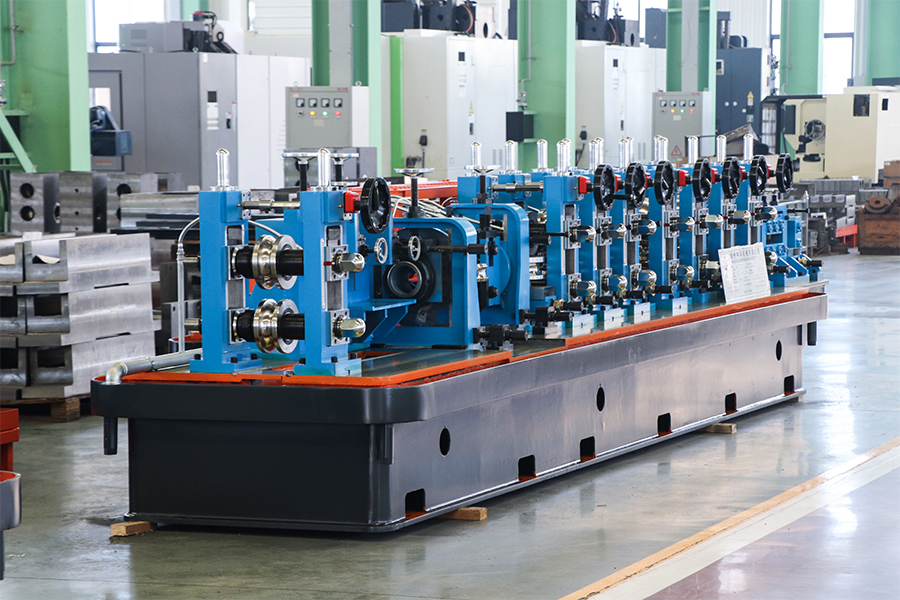

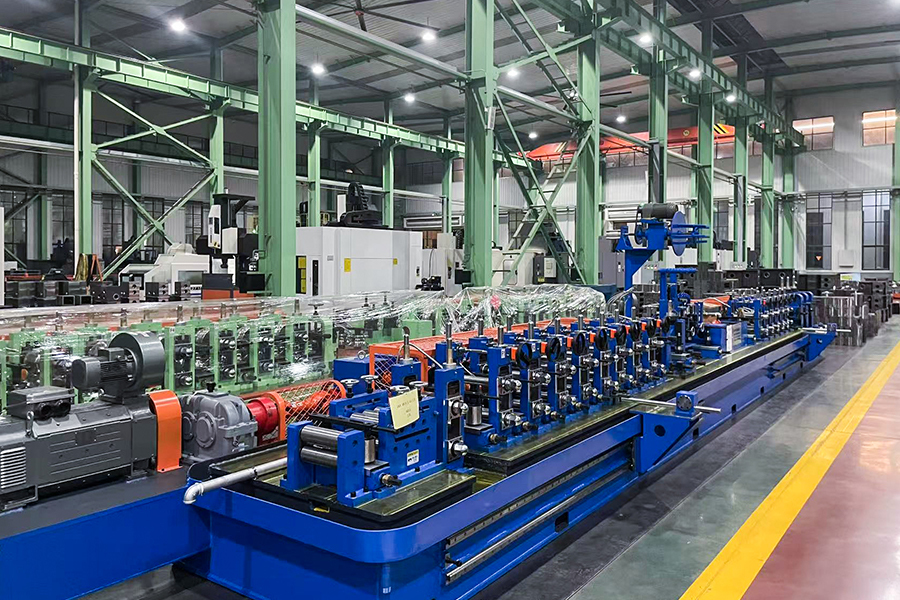

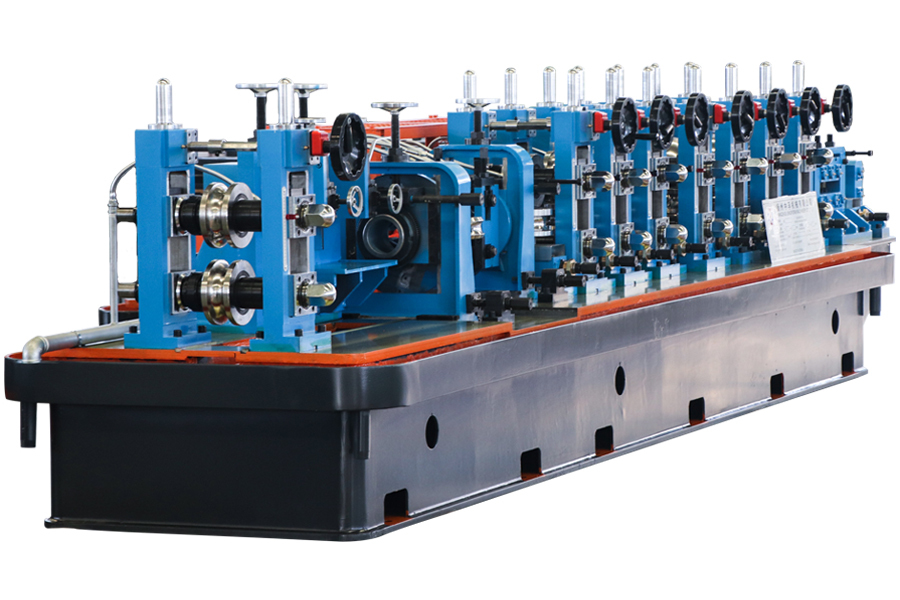

HG50 ERW Tube Mill Line

Praecipua technicae operationis ac explicatio in linea productionis

Apparatus exemplar Productio range Muri crassitudine range Celeritas Milling Summus frequentia potentia
HG50 Φ19~Φ63.5 mm 5.8~2.5 mm 20~100 200KW
□15×15~50×50 □δ≤2.0mm

PREV: HG76 ERW Tube molendini versus Next: HG25 High Precision HF Tube Mill Line

1. Officina necessaria

Item Parameter Dicta
Pasce directionem Laeva sive dextera viscus (processus officina dependet in mos in layout) Adversus apparatum, viscus rudis materiae directio
Summa potentia armorum

Proxime 440KW (machina principalis 160KW Alta frequentia 200KW apparatus auxiliaris 80KW)

Virtus copiam voltage vexillum 380V/50HZ; Quattuor tempus filum systematis tres- Minimum voltage distributio scrinium, cables, mos auto-provisus
Armorum area operuit

L40-45M×W 4.5M

Secundum apparatu layout
Summus apparatus frequentia glutino regio operitur L6M×W 3M×H 2.8M
Aquarum copia (REDIVIVUS)

Stagnum unum refrigerans: 30m³; Quisque posuere laoreet elit. Vel, elit potest emptori picturas officinas praebere, et ex delineatas facere, consilium eundi causandi facere.

Lorem ipsum aqua piscinam, aquam sentinam, systema plumbi, et turrim refrigerationem praebet
Aeris copia Aer compressor: unus paro 1.6m³for communis ferro tibia, si Galvanized pipe opus 3.5m³ Lorem auto-compressorem aeris, piscinam repositam, et pipelineum praebet
apparatu elevatio Aircrane V ~ 10Tons: duos Lorem auto-praebet
Normalis partes consumabiles 1）Scraper cultri
2） vidit ferrum
3）Ferrite
（4）Induction coil (tubus cupreus, tubus insulatus)


Processus productionis

Rudis materia ( chalybe expolitio ) → expolitio → tonsura et finis glutino → materia cumulatio → non- vis aequandi → molendini formatio → summus frequentia glutino → removens lappas extra commissurae glutino → refrigeratio → circumspicientia → dure corrigens → fixa longitudo secans → peractio → sarcinis

Technical specification (imaginibus tantum referat)

Duplex latus I hydrau uncoiler
Munus Munus huius unitatis est totam orbem detractam ferro excutere et necessarias materias rudis machinae formandae praebere.
Loading Pondus Maximilianus. 3.5 Tons /
conc capitibus Conus duplex caput, motor hydraulicus remotum imperium automatic gyrationis, n et postea materia
Conehead structuram genus Coniunctio linguae, fortis et stabilis
Genus Expand Hydraulica expanding
Cono capitibus materia Fusum: 42CrMo, cudendum, altiore temperamento;
Arcus laminam: 45 # altiore temperantia
Cuneus labor lapsus: 45 # ferro temperari
Genus fregit Genus pneumaticum
Materia interclusio machinam Modus manualis

2 、 Tonsura et petat-welder


Munus Munus eius est tonsura et aligning caput et finis duarum pituitarum diversarum, partes inaequalium secantium et duas ligaturas ligaturas simul ut linea continue operari possit.
genus tonsurae

Tonsura pneumatica, materia: Cr12MoV

Genus clamping Pneumatica clamping
genus welding TIG automatic welding

3.1 、 Vertical - type Accumulator (latitudo range potest esse electrically accommodetur cum catena)
Munus Adhibetur in accumulandis satis chalybeis denudat ut machina currit continue
Extra magnitudine Longitudo 6.0 m*
Pascentium motricium 7.5KW (AC motricium cum variabili frequentia celeritatis regulatio)
Pascentium celeritatem MAX 200m/min
Facultatem repono 150～300m

3.2 、 Accumulator Horizontalis
(3.1 et 3.2 eligendi Lorem)
Munus Adhibetur in accumulandis satis chalybeis denudat ut machina currit continue
Extra magnitudine O.D. 4.2m
Pascentium motricium 11 KW.
Repono motricium 15 KW.
Pascentium celeritatem MAX200m/min

2. Formans et inspectionem machinae principalis (septem ante et quinque posteriores 4 caput Turcicum quadratis dis, corpus lectum scinditur)

Praecipua machina

Ordinatio Unit

2 H → 2 V → 3H → 3V → 4 H → 4 V → 5 H → 5 V → 6H → 6 V → 7 H → 7V

Ducentia et 2 vel 3 scutulis Extrude →

Sizing：1 V → 1 H → 2 V → 2 H → 3 V → 3 H → 4 V → 4 H → 5 V → 5 H → 6V → 6 H → Recuperatio mensurae → Rectans 1 → Rectans 2 → V.

1 ） Pascentium et adtritio fabrica
Munus
cum VII volvitur adtritio fabrica ingredi formatam machinam constanter
Structure
1roll Anti jumping, 2 rotulorum verticalium, 7 voluminum

2 ）

Machinam formandi (spli-type)

Munus Clavos ferreos paulatim exprimi potest in codicellos ad fistulas formando volumina, et ad machinam glutino mittere;
Formans genus W forma facta, duplex radii foraminis genus
Horizontali volumine stat 7stands
Vertical-volumen sto 7stands

Horizontali volumine stat

quantitas

7sets

Structure
Duplex columna machinalis gantaria, cum fabricante fine compage capax, ad latus volumen repositum
Materia horizontalium Subtilitas partium ferro
Horizontalis scapus diametri Φ60mm
Horizontalis scapus materia 42CrMo, normalized HB260~290, superficies alta frequentia exstinguentis HRC50~55
Superficies temperatura exstinguitur
Optiones: The-horizontal-volumen stat fabrica vermem calces synchroneis temperatio et rectorem adhibet, quae accurate et synchrone lapsus altitudinem cylindri in plana accommodare potest, ut facilius et accuratius varias magnitudinum mutare possit. extra pretium

Vertical-volumen sto

quantitas

7stands

Structure Versoria duplex structura, laminis pullis firmata et affixa; Mola volvens in cylindro stipite per gestus coacervata est, ut facile mobilis scutellas faciat.
Materia verticalis stat QT400 labor lapsus est genus socors (princeps praecisione non facile laedi)
Verticalis scapus diameter

Φ40mm

Verticalis materia scapi 40Cr, normalized HB260~290, superficies alta frequentia exstinguentis HRC50~55
Superficies temperatura exstinguitur
cylindro temperatio methodo
Centrum et positio duorum spiculorum cylindri cochleae manicam cochleae aptat, et nux aenea nux aenea est; Altitudo cylindri verticalis est subtiliter aptando nucem aptando.

gearbox
quantitas 7sets
Materia arca QT400
Transmissio genus Cochleam revellere coneris; calces tradenda
Cochleam materiam calces revellere coneris;

20CrMnTi

Fictis, dente superficiem exstingui curatio
Telum materia calces 40Cr, normalized HB260~290, superficies alta frequentia exstinguentis HRC50~55
Superficies temperatura exstinguitur

3) welding sectionem
① guiding
Munus Munus huius unitatis est ut fistulam blank ad fabricam extruentem transmittat
Structure 2-volumen genus, horizontaliter et verticaliter aptabile, et ad quemdam angulum gyrari potest. Temperationes horizontales et verticales cochleae baculis utentes fiunt, gyrationis frame dum adaptationes fiunt utentes anni vermiculi.
hastile materia 40Cr, normalized HB260~290, superficies alta frequentia exstinguentis HRC50~55
Superficies temperatura exstinguitur
② Expressa fabrica (Duae vel tres cylindro genus SQ)
Munus in inconsutilis desuper glutino claudetur
Structure Duo vel tres scutulis typus SQ, versorium duplex structura, affixum cum lamella viverra firmatum
hastile materia 40Cr, normalized HB260~290, superficies alta frequentia exstinguentis HRC50~55
Superficies temperatura exstinguitur
③ Scraper
Munus cultello rasorio uteris, ut cucurbita exterius tollatur, glutino commissura lenis et limpida erit.
Structure

2 strigiles ponit; Stridens sursum, deorsum, horizontaliter accommodetur, et munus jejunium elevatio habet. grabatus vel cylindrus praebetur sub ense possessor;

④ ut tincidunt
Munus Tibias ferreas stabiliens et adulatione lapidum externorum et partium inaequalium
hastile materia 40Cr, normalized HB260~290, superficies alta frequentia exstinguentis HRC50~55Tempering Surface quenching
IV) refrigerationem tristique
Munus aqua spargit piscinam adoptare generis fac ut tubus blank satis refrigerat.
Structure Arca-typus compages iuncta est, superior fistula aquatica in elisam figuram facta est et fistulam ferri refrigerat.

5)

Machina inspectio (6 stat horizontalis;  6 Verticalis stat  2  Contramenta  recta)

Munus
Munus quattuor voluminis generis machinae quadratae impellentium est ad fistulam chalybem praecisionem informandam in fistulam quadratam in quadrato spatiosam et dure corrigendo ad ideales dimensiones geometricas et planas.
① Horizontalis sto 6. Occidere, idem ac machinatio
② Vertical-volumen sto 6 occidit, idem ac machinatio

3） Erigens device 2 sets of Turkish head straighting 2 sets of the vertical scutulis (see the last Turkish - heads above)
Genus Erigens fabrica
Turcica capita, 360° rotabiles
Structure
2/4 - Volvitur tabula, cum rotulis volubilibus in eadem superficie distributis, horizontaliter et verticaliter aptabilibus, et ad quemdam angulum rotandi capax. Temperationes horizontales et verticales cochleae baculis utentes fiunt, gyrationis frame dum adaptationes fiunt utentes anni vermiculi.
hastile diameter Φ30mm
hastile materia 40Cr, normalized HB260~290, superficies alta frequentia exstinguentis HRC50~55
Superficies temperatura exstinguitur

VI) Main repulsi fabrica
Coegi Via
Motor → Reductor → Apparatus arca → Universalis iaculis → horizontalis spicula
Praecipuum motor exemplar, potentia 160KW DC motor ， 1 set ；
reducer

ZLY224

，1  set ；
Gearbox pars formatam 7 sets ； inspectionem partem 6 sets
Umbellae spiralis capsulae transmissionis calces, magna onera portantes capacitatem, alta transmissionis efficientia, et longae vitae ministerium.

Umbellae umbellae materiari calces 20CrMnTi， Temperans superficiem exstinguiendi。Deptionem carburised layer1.1～1.5mm， superficies exstinguendi duritiem HRC55～60。

5 、 Rollerus
Roll Materia ： Cr12mov ， Curatio caloris durities: HRC58 - 62. Clavis filum secans et CNC machinis curandi foramen accurate figurat et superficies expolitio laborat.
extrudere volumine Materia ： H13 ， Curatio caloris duritia: HRC50 - 53. Clavis filum secans, profile CNC tornum, superficies expolitio laborat.
Codex cylindrus Materia ： 45# ferrum.

6.1 、 Calidum secans serra

Customers potest eligere 6.1 vel 6.2

Structure PLC, Ordinarius serram secans
Maximum secans diameter 1） Φ63.5mm
2） maximum cutting crassitudine

5.5mm

3） secans longitudinem et subtilitatem L=3～8m, ≤±3 mm
4 coegi genus Vidit pneumaticum elevatum et demissum (videns caput auctum et auctum);
-5, magnitudinem vidit ferrum

Φ500mm×Φ65mm×2.5/3.0mm

6） pulsis motricium 15 KW AC motor
7 secans motricium 15 KW AC motor
8）Clamp Air Clamp

6.2 、 Frigus secans serram

Customers potest eligere 6.1 vel 6.2

Structure Servo imperium cutting
（ 1 . Maximum secans diametri Φ63.5mm
（ 2 . maxime secans crassitudine

2.5mm

（ 3 . secans longitudinis et subtilitatis L=4～8m, ≤±2 mm
（ 4 . genus coegi Servo motricium / pila cochlea / lineae dux
（ 5 . magnitudinem vidit ferrum

Φ400mm-HSS

summus celeritas ferro
（ 6 . driving motricium 11 KW Yaskawa Servo motor
（ 7 . secans motricium 11 KW AC motor
（ 8 ） Pascentium motricium 1.8 KW Yaskawa Servo motor
（ 9 . celeritas sectionis 20-120 m/min

7 、

Curre-e mensam

Munus
Munus est, accelerare separationem fistulae ferreae ad certas longitudinum resetas et eas in area packaging
Transmissio motor 2.2 KW
AC motricium cum variabili frequentia celeritate regula
quantitas of feeding rollers 9 sets
Longitudo 9 M

8、200KW summus frequentia machinae glutino
Introductio Totum apparatum ratio PLC refrenat ad comprehensivam interclusionem temperantia et culpa diagnosis functionum consequendam, et status operativus instrumenti per velum LCD monitorium est.
Compositio RECTIFIER ARCA
ARCA
REFRIGERATIO INVENTUM
MENSA
TRANSFORMATOR
DC SPEED ADJUSTOR




9 、 Cadmiae spargit machina (mos optio)
Overview Arcus ad utrumque filum urit ut fons caloris, causans filum ad conflandum. Eodem tempore, aer compressus atomis filum liquefactum in stillicidia gasi, quae tunc summa celeritate sparguntur in superficies workpiece praetractata. Formam integram efficiens.
